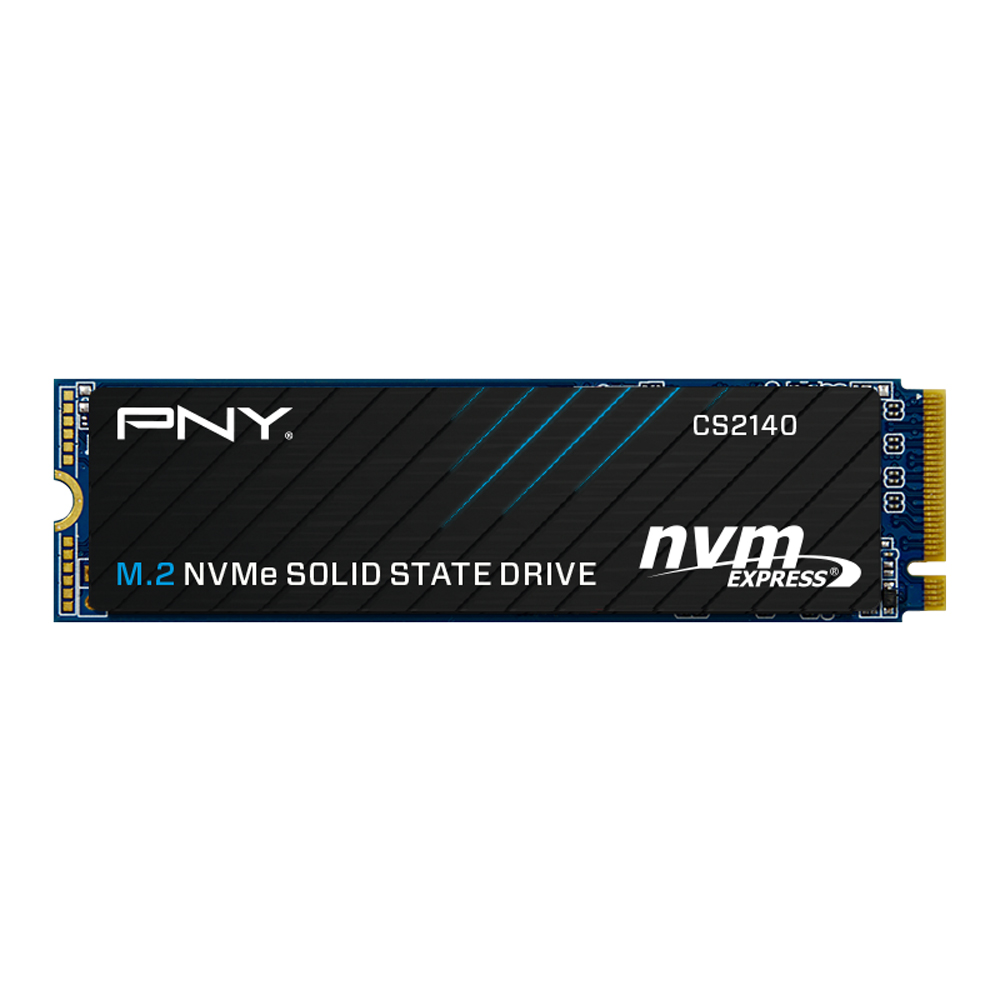

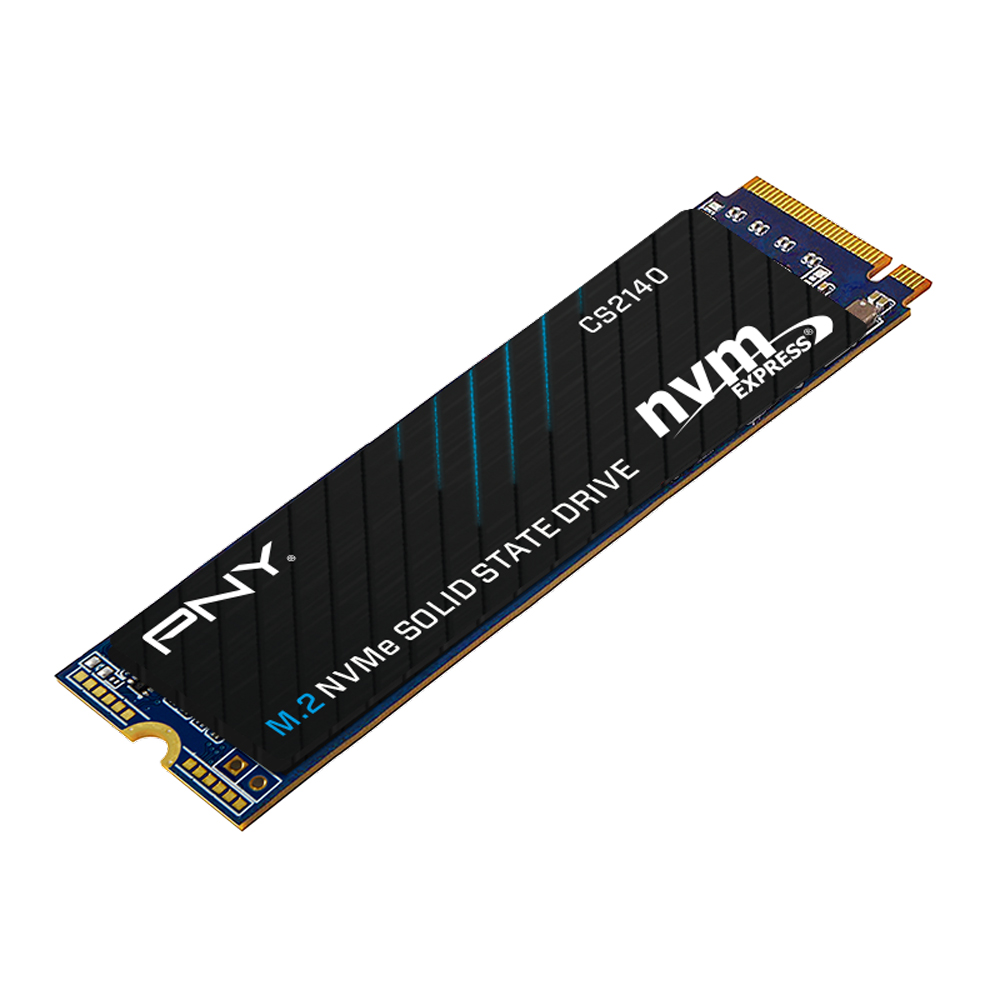

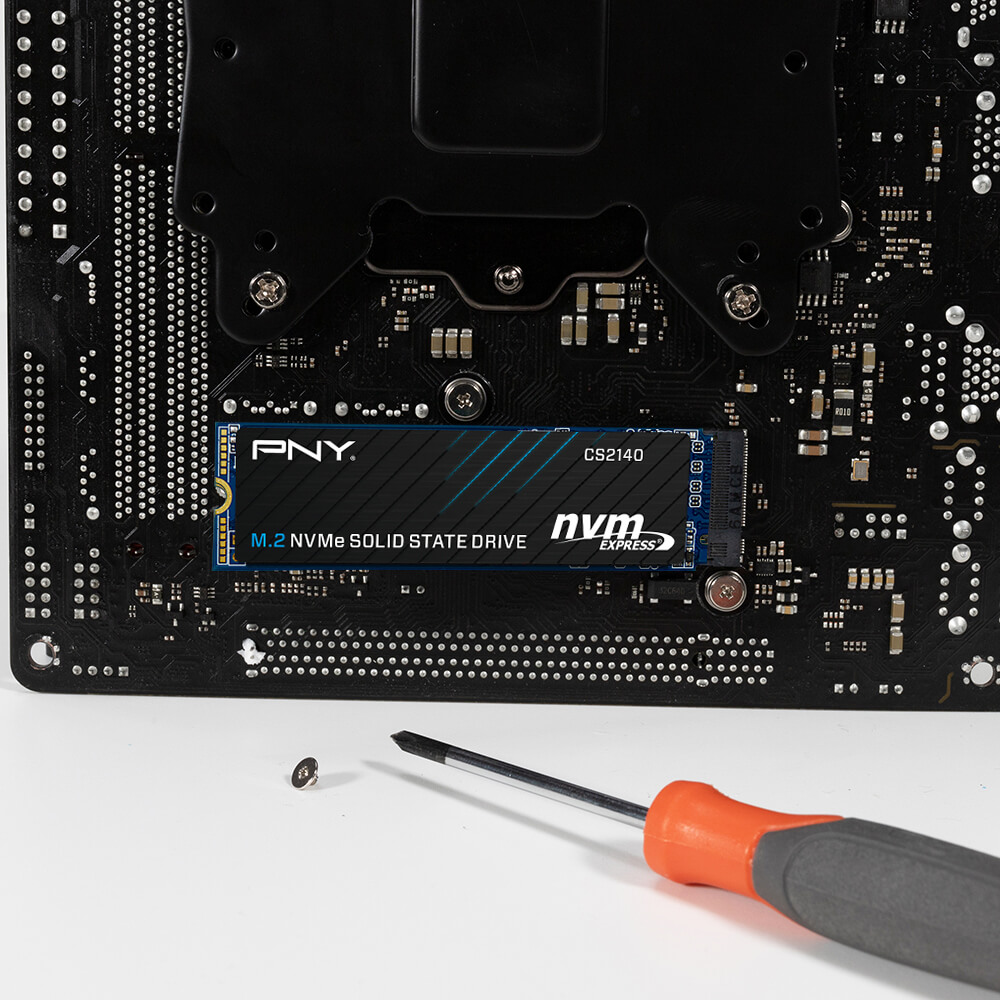

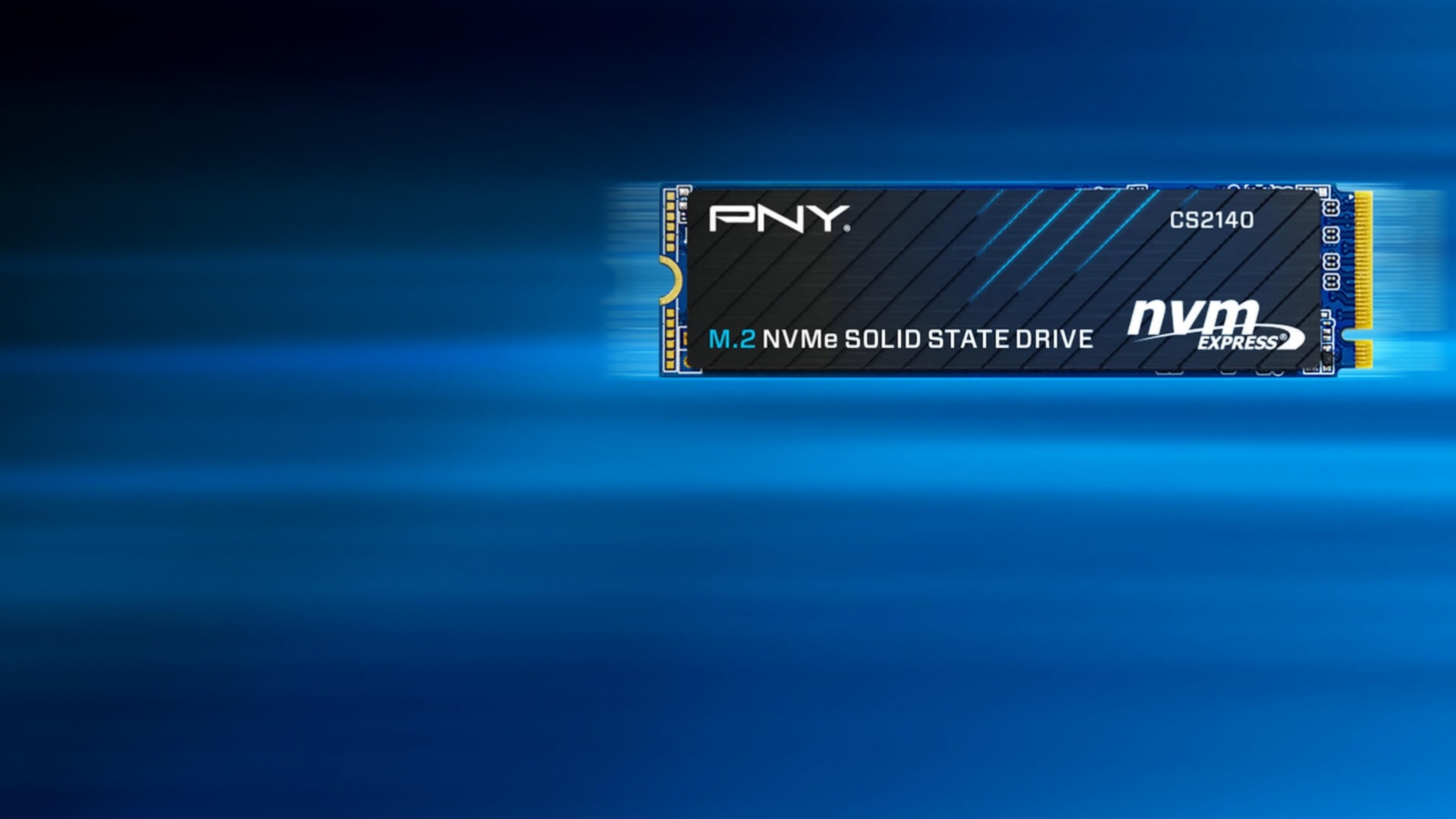

CS2140 M.2 2280 NVMe Gen4x4 SSD
- NVMe Gen4 upgrade from a SATA based SSD in an NVMe enabled computer

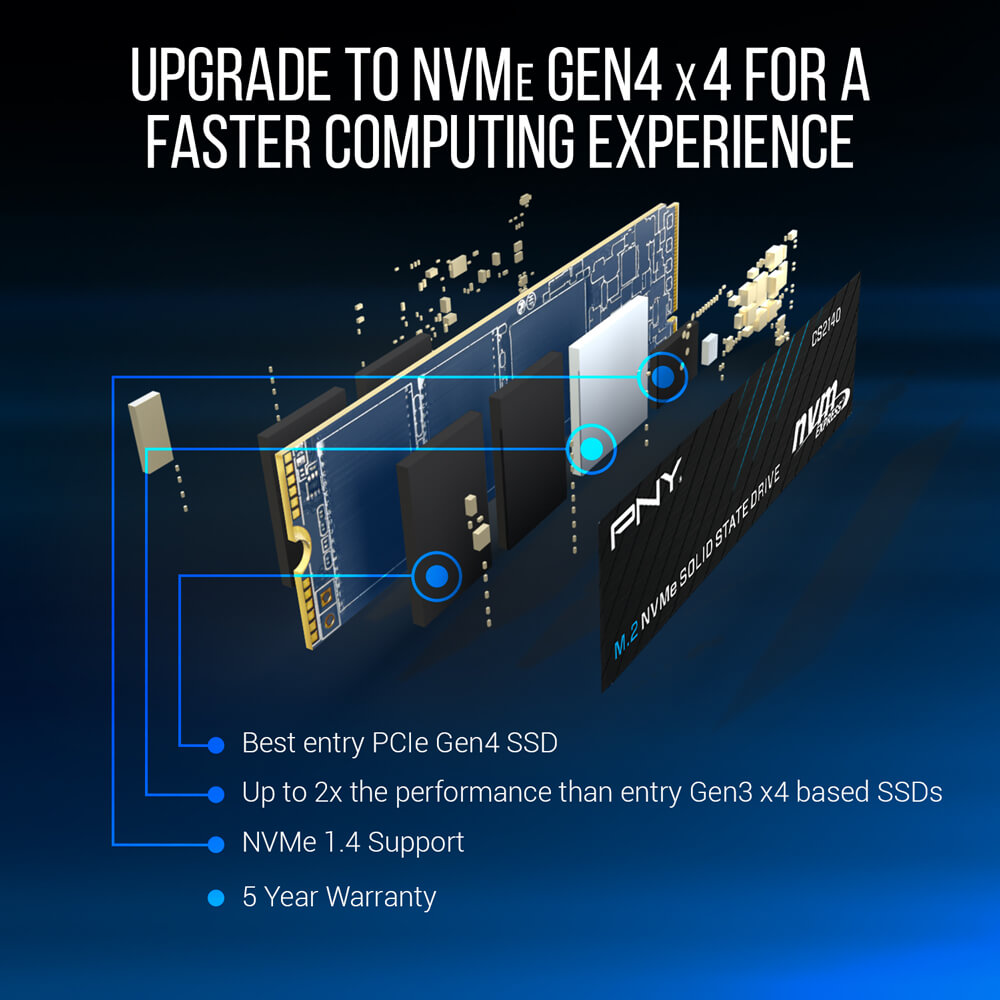

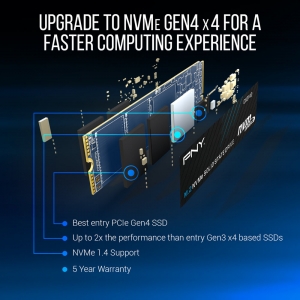

- High performance SSD with up to double the performance as compared to entry Gen3 x4 based SSDs

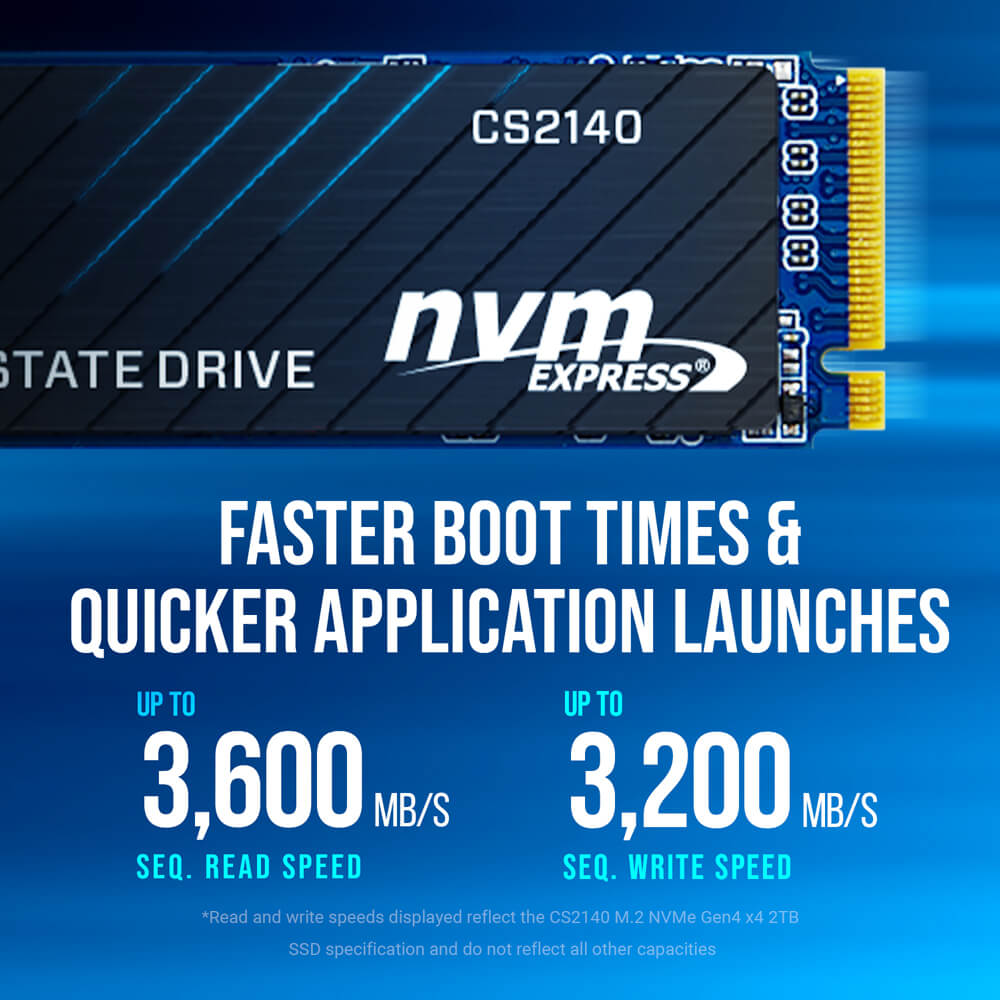

- Transfer speed up to 3,600 MB/s
- Faster boot-up and quicker application launch
- Better overall system performance, reliable storage
- Low power consumption, cool and quiet operation

CS2140 M.2 2280 PCIe NVMe Gen4x4 SSD

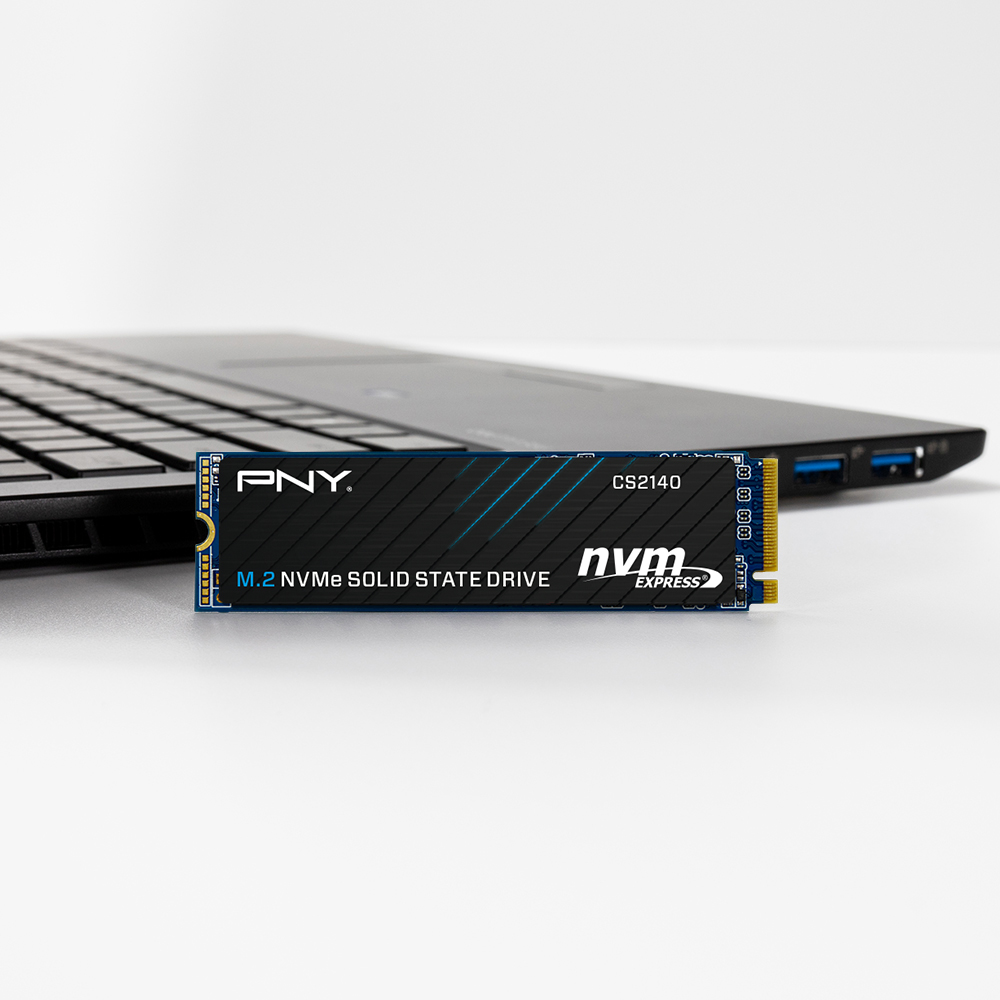

Excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer.

Specification
-
Usable Capacities250GB/ 500GB/ 1TB / 2TB
-
NAND Components3D NAND Flash Memory
-
InterfacePCIe Gen4x4 NVMe 1.4
-
Form FactorM.2 2280
-
Package Dimensions (L×W×H)123 x 85 x 4.3 mm
-
Product Dimensions (L×W×H)22 x 80 x 4 mm (Max)
-
Weight6.6g
-
Max Sequential Read*250GB: Up to 3,200MB/s
500GB - 2TB: Up to 3,600MB/s -
Max Sequential Write*250GB: up to 1,200MB/s
500GB: up to 2,300MB/s
1TB - 2TB: up to 3,200MB/s -
TBW250GB: 150, 500GB: 200, 1TB: 400, 2TB: 800
-
PCIe Link Power ManagementAPST, ASPM, L1.2
-
Operating Temperature0°C to 70°C
-
Storage Temperature-40°C to 85°C
-
MTBF1,500,000 Hours
-
Error Correction CodeLDPC (Low Density Parity Check) ECC Algorithm
-
Secure EraseStandard, Enhanced Secure Erase
-
Product Health MonitoringSelf-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
-
Full End-to-End Data path protectionSupported
-
Performance OptimizationHMB (Host Memory Buffer)
-
Warranty5-year Limited Warranty
